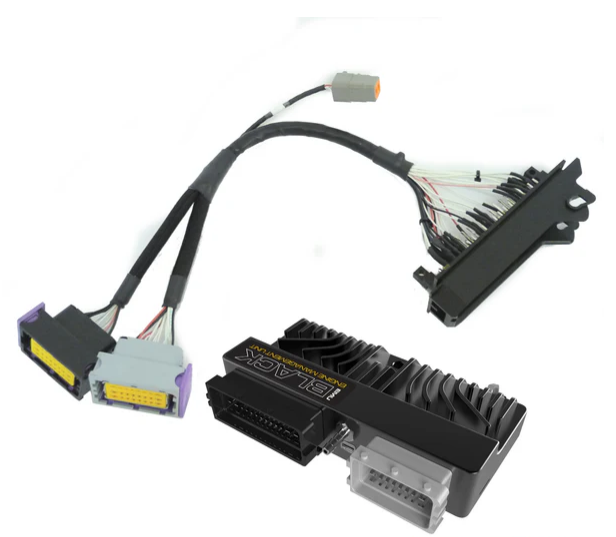

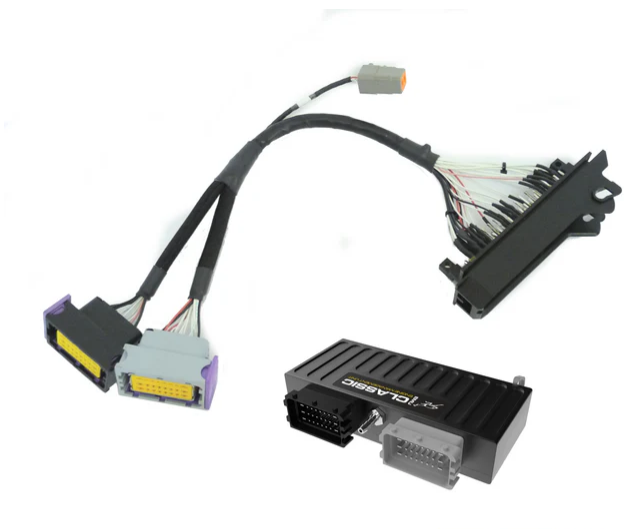

ECUMaster Citroën Saxo VTS Single Plug Plug and Play ECU Kit (1997–2000)

This plug and play ECU kit is designed for Citroën Saxo VTS models from 1997 to 2000 fitted with the single plug OEM ECU. The kit can be supplied as an adaptor-only solution or as a complete kit including either the ECUMaster EMU Black or ECUMaster EMU Classic ECU.

Engine control capability

• Standalone engine management based on ECUMaster EMU Black or EMU Classic platform
• Designed for Citroën Saxo VTS single plug ECU applications
• Controls fuel, ignition, and auxiliary engine systems
• Enables advanced motorsport functions for race and rally use
• Final functionality depends on ECU selection and vehicle specification

Hardware and platform

• Citroën Saxo VTS single plug plug and play adaptor
• Optional ECUMaster EMU Black or ECUMaster EMU Classic ECU
• Pre-wired 6 way DTM lambda connector on adaptor
• Designed to connect directly to the factory wiring loom
• No permanent modification to the original wiring loom

Inputs and outputs

• Factory sensors and actuators connected via adaptor
• Wideband lambda connection via 6 way DTM interface
• Provision for additional sensors on request
• Input and output availability depends on selected ECU configuration

Communications

• USB connection for configuration and tuning via selected ECUMaster ECU
• CAN bus support available depending on ECU selection

Data logging

• Data logging supported via the selected ECUMaster ECU
• Logging capability dependent on ECU type and software setup

Software

• Configured using ECUMaster software appropriate to the selected ECU
• Free firmware updates supported by ECUMaster

Notes

• Please select EMU Black or EMU Classic ECU when ordering
• Lambda to DTM link loom is not included
• Compatible Bosch LSU 4.2 and LSU 4.9 lambda sensors available separately
• Keyed immobiliser function is disabled when using this kit

Recommended applications

• Citroën Saxo VTS models from 1997 to 2000 with single plug ECU
• Race and rally applications

What’s included

• Citroën Saxo VTS single plug plug and play adaptor
• Optional ECUMaster EMU Black or ECUMaster EMU Classic ECU
• Base start map supplied when ECU option is selected
