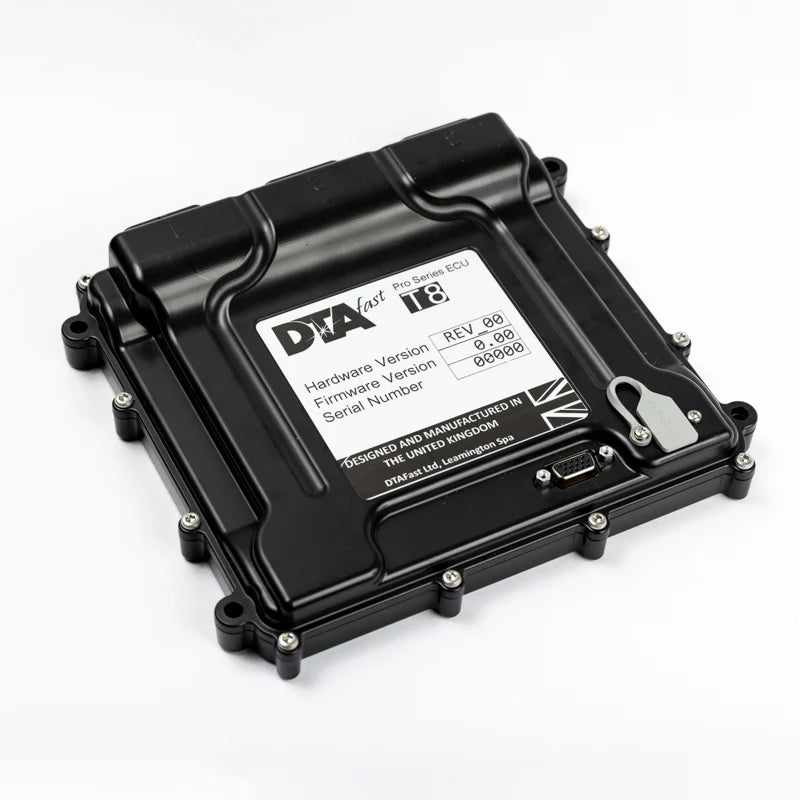

DTA T8 ECU
The T8 is ideal for fully sequential 6 or 8 cylinder engines but can also run 12 cylinder engines semi-sequentially. The T8 features
dual wideband lambda and dual variable cam control making it a great choice for V engines. It also has 4 wheel speed inputs to
allow for more advanced traction control, including wet/dry modes.
T-Series engine control units are powered by an all-new, automotive specific, multi-core processor. They feature Bosch lambda
controllers for maximum accuracy, multiple safety redundancies, high resolution map tables, fully configurable I/O and up to
32MB of logging at up to 500 Hz with compression algorithms for fast log downloads. The PC software has a user-friendly, responsive
design for better readability on high resolution monitors using high scaling (DPI). It features a full oscilloscope for
crankshaft/camshaft signal analysis and allows firmware to be upgraded without special cables or separate software.
Product features
| Analogue (0-5v) | 12 |
| Digital | 6 |
| Thermistor (NTC) | 3 |
| Wheel Speed | 4 |
| Wideband Lambda | 2 |
| Knock | 0 |
| Digital (PWM) | 10 |
| Coil Drivers | 8 |
| Injector Drivers | 8 |
| Cam Solenoid Drivers | 2 |
| H-Bridge (FBW) Drivers | 0 |
| Auxiliary PWM Control | ✓ |
| Pit Limiter | ✓ |
| Launch Control | ✓ |
| Flat-shift Control | ✓ |
| VTEC Control | ✓ |
| Boost Control | ✓ |
| Idle Control | ✓ |
| Wideband Lambda | dual |
| Variable Cam Control | dual |
| Traction Control | ✓ |
| Wet/Dry Traction | ✓ |
| Fly-by-wire Control | ✗ |
| Knock Control | ✗ |
| Paddle-shift Control | ✗ |
| USB | For PC connection |
| Serial | For dyno box connection |
| CAN bus | For communication with dashboards, power distribution modules, dataloggers etc. |
| Dimensions | 188x176x25-42mm |
| Weight | 945g |
| Material | billet aluminium |
| Ingress Protection | IP67 |
| Hardware Upgradeable | To T8+/T12/T12+ |
