Common ECU Grounding Mistakes and How to Avoid Them

Poor grounding is one of the most common causes of problems with aftermarket ECUs. It is also one of the most misunderstood parts of an installation.

Many ECU issues that appear to be software related or sensor faults are often caused by grounding problems introduced during wiring. These issues may not appear immediately. Instead, they tend to show up later as intermittent faults, unstable readings, or inconsistent behaviour that becomes difficult to diagnose.

This article covers the most common grounding mistakes seen in real world aftermarket ECU installations and explains how to avoid them.

Using chassis ground instead of direct engine ground

One of the most frequent grounding mistakes is connecting the ECU directly to the chassis instead of the engine block or cylinder head.

Most engine sensors reference the engine itself. If the ECU ground is taken from the chassis, any voltage difference between the engine and chassis becomes part of the sensor signal. The ECU then interprets this difference as real data.

This often results in:

• Unstable RPM signals
• Noisy analogue sensor readings
• Inconsistent ignition timing

How to avoid it

ECU power grounds should be connected directly to the engine block or cylinder head using short, low resistance cables. The engine should be treated as the primary electrical reference point.

Sharing ECU grounds with high current devices

Another common issue is sharing ECU ground points with high current components such as:

• Starter motors
• Alternators
• Fuel pumps
• Cooling fans

High current devices introduce voltage drop and electrical noise into the ground path. When the ECU shares this path, its reference voltage becomes unstable.

This can lead to:

• Ground reference offsets affecting sensor accuracy
• Intermittent ECU resets
• CAN communication errors

How to avoid it

ECU grounds should be kept electrically separate from high current devices. Use dedicated ground points and avoid stacking multiple systems onto the same ground lug.

Mixing sensor grounds and power grounds

Sensor grounds and power grounds serve very different purposes but are often incorrectly combined during installation.

Sensor grounds are designed to provide a clean reference for low voltage signals. Power grounds carry current for outputs and internal ECU circuitry. Mixing the two introduces noise directly into sensor measurements.

This commonly causes:

• Incorrect temperature readings
• Throttle position instability
• Lambda reference offsets

How to avoid it

Follow the ECU manufacturer’s grounding strategy. Sensors should return only to the ECU’s dedicated sensor ground pins and not directly to the engine or chassis.

Using long or undersized ground cables

Ground cables that are too long or too small in cross section increase resistance and voltage drop, especially under load.

This can cause:

• Voltage offsets between the ECU and sensors
• Increased susceptibility to electrical noise
• Heat buildup at ground connection points

How to avoid it

Use short, appropriately sized ground cables. Keep ECU grounds as direct as possible and avoid unnecessary joins or extensions.

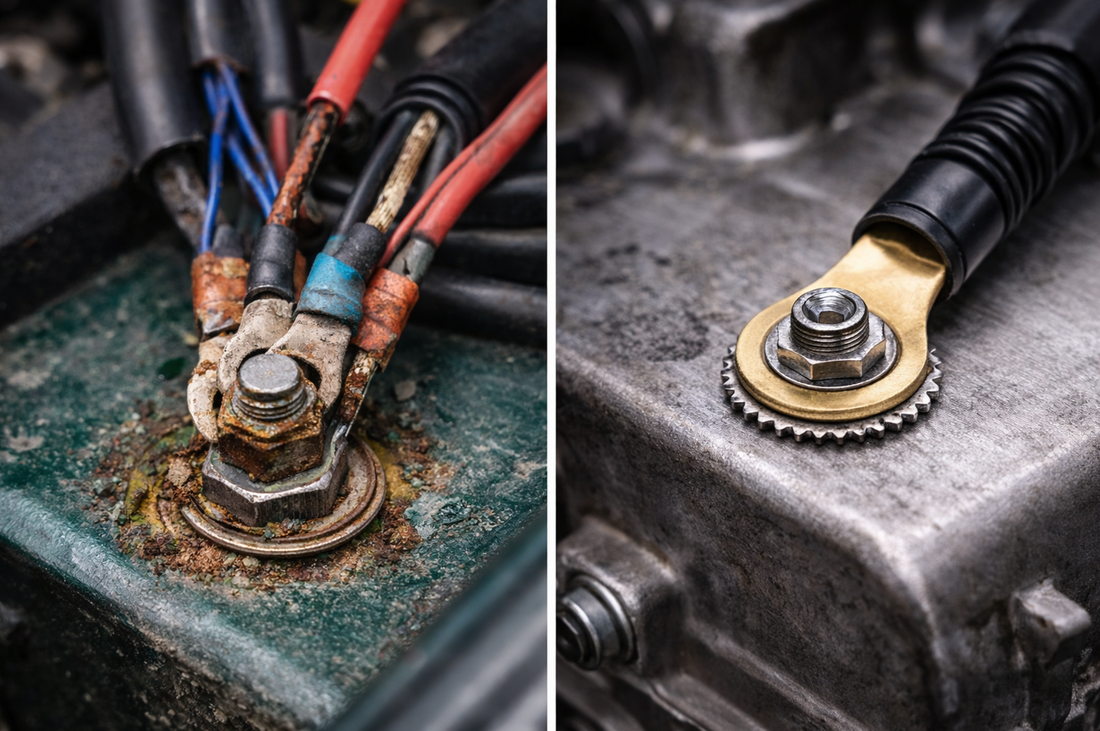

Poor mechanical ground connections

Even when the wiring layout is correct, poor mechanical connections can compromise the entire grounding strategy.

Common problems include:

• Paint or powder coat under ground lugs
• Corrosion
• Loose fasteners
• Poor quality crimps

How to avoid it

Ensure all ground points are clean, bare metal. Use proper crimp tools, quality terminals, and secure fasteners. A ground that looks clean is not always electrically sound.

Ignition coil grounding and separation from ECU grounds

Ignition coil systems draw high current in very short pulses. Because of this, their ground return paths must be handled carefully.

It is common and acceptable for multiple ignition coil grounds to be spliced together and terminated at a single engine ground point. This mirrors OEM and motorsport practice and works well when done correctly.

Problems arise when ignition coil grounds are combined with ECU power grounds or sensor grounds before reaching the engine. In these cases, the high current return from the ignition system can introduce ground voltage rise and electrical noise into the ECU’s ground reference.

This can lead to:

• Trigger instability
• Analogue sensor reference offsets
• ECU resets under load
• Intermittent misfires at higher RPM

How to avoid it

Splice ignition coil grounds only with other coil grounds, then terminate them directly to a clean engine ground point. Keep ignition ground wiring electrically separate from ECU power grounds and sensor ground returns until they meet at the engine.

Shielded trigger grounds and dedicated shield ground pins

Some aftermarket ECUs include a dedicated shield or trigger ground pin for shielded inputs such as crank, cam, or knock sensors.

Shielded cables use a braided or foil layer around the signal wires to protect them from electrical noise generated by high current components such as ignition coils and injectors. That shielding only works correctly if it is grounded in the correct way.

A common mistake is grounding the shield at both ends or tying it into the engine or chassis ground. This can create ground loops and allow the shield itself to act as an antenna, introducing noise rather than removing it.

Best practice for shielded trigger wiring

• Connect the shielding layer to the ECU’s dedicated shield or trigger ground pin where provided
• Ground the shield at one end only, typically at the ECU
• Do not connect the shield to the engine block or chassis
• Keep shielded signal wiring routed away from high current circuits

Correctly grounded shielding helps maintain clean trigger signals, particularly at higher RPM where signal integrity is critical.

Best practice grounding approach

• Ground ECU power grounds to the engine, not the chassis
• Keep ECU grounds separate from high current devices
• Return sensor grounds only to the ECU
• Use short, low resistance ground paths
• Ensure all mechanical connections are clean and secure

Grounding as part of a complete ECU installation

Correct grounding is only one part of a reliable ECU installation. Power supply design, sensor wiring layout, and separation of high current circuits all work together to ensure stable operation.

Understanding how grounding fits into the wider wiring system helps prevent many of the issues commonly encountered during tuning and long term use.

Conclusion

Taking the time to ground an ECU system correctly is one of the simplest and most effective ways to ensure reliability and accuracy.

Good grounding reduces electrical noise, protects sensitive inputs, and allows the ECU to operate as intended. A clean, well planned grounding strategy is the foundation of any stable aftermarket engine management system.
